750w E-MINI ATV
750w E-MINI ATV
Product Description
HIGHPER brings a new model for 2023, the ATV-13E(C). It is a member of the Sirius series. The design leans toward the model for agricultural use. The wide frame and plastic parts can bring comfort to children when riding. The dimensions of the whole car are 1215*750*775MM, with a sitting height of 510MM and a wheelbase of 785MM.
In terms of design, Sirius uses a very large headlight, and the brake light at the back has left and right, making it safer to drive at night. Also it has a beautiful front bumper and a rear rack.
Motor
We use a 750w rated power axle transmission motor with differential speed, the maximum power can reach 1500w, and the maximum speed can reach 33km per hour. The differential motor is safer when turning and reduces the wear and tear on the tires and motor for longer life.
The battery we have as standard is a 48v12ah high quality lead acid battery. The single driving range can reach 30KM and the driving time is about 40 minutes. If you want a larger battery, 48V20AH lead-acid or lithium batteries are available. At the same time, the battery is removable, you can always take out the battery and charge it in a safe and convenient place. Or you can buy two sets of batteries and rotate them to increase riding time.
The braking system uses front drum brakes and rear hydraulic disc brakes, safe and efficient!
Tires are made of front and rear 145*70-6 size tubeless high quality tires. Equipped with wheel decoration cover.
Sirius series is now in mass production, welcome to inquire!
Details
Led Strips Instead of a Few Small Beads,
Will Make the Light More Penetrating in the Dark.
The Sturdy Rear Rack Allows You to Carry More Gear
The Battery Case is Removable,
Which Can Either Be Charged Directly in the Atv Through
the Charging Port or Taken It Away to Charge It Separately.

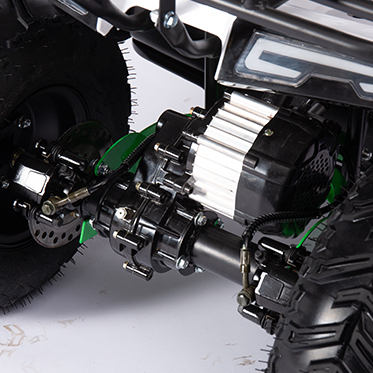

The Differential Motor is Safer when Turning And
Reduces the Wear and Tear on the Tires and Motor for Longer Life.
| MODEL | ATV-13E(C) |
| MOTOR | BRUSHLESS SHAFT DRIVE WITH DIFFERENTIAL |
| MOTOR POWER | 750W 48V (MAX. POWER 1500W) |
| MAX SPEED | 35KM/H |
| THREE SPEED KEY SWITCH | AVAILABLE |
| BATTERY | 48V12AH LEAD-ACID (48V20AH OPTIONAL) |
| HEADLIGHT | LED |
| TRANSMISSION | SHAFT |
| FRONT SHOCK | HYDRAULIC SHOCK ABSORBER |
| REAR SHOCK | HYDRAULIC SHOCK ABSORBER |
| FRONT BRAKE | DRUM BRAKE |
| REAR BRAKE | DUAL HYDRAULIC DISC BRAKE |
| FRONT & REAR WHEEL | 145*70-6 |
| WHEELBASE | 785MM |
| SEAT HEIGHT | 510MM |
| GROUND CLEARANCE | 130MM |
| NET WEIGHT | 69.60KG(48V12AH) |
| GROSS WEIGHT | 81.00KG(48V12AH) |
| MAX LOADING | 65KG |
| PRODUCTS SIZE | 1195x720x770MM |
| OVERALL DIMENSIONS | 1090x650x525MM |
| CONTAINER LOADING | 64PCS/20FT, 178PCS/40HQ |
| PLASTIC COLOR | WHITE BLACK |
| STICKER COLOR | RED GREEN BLUE ORANGE PINK |
