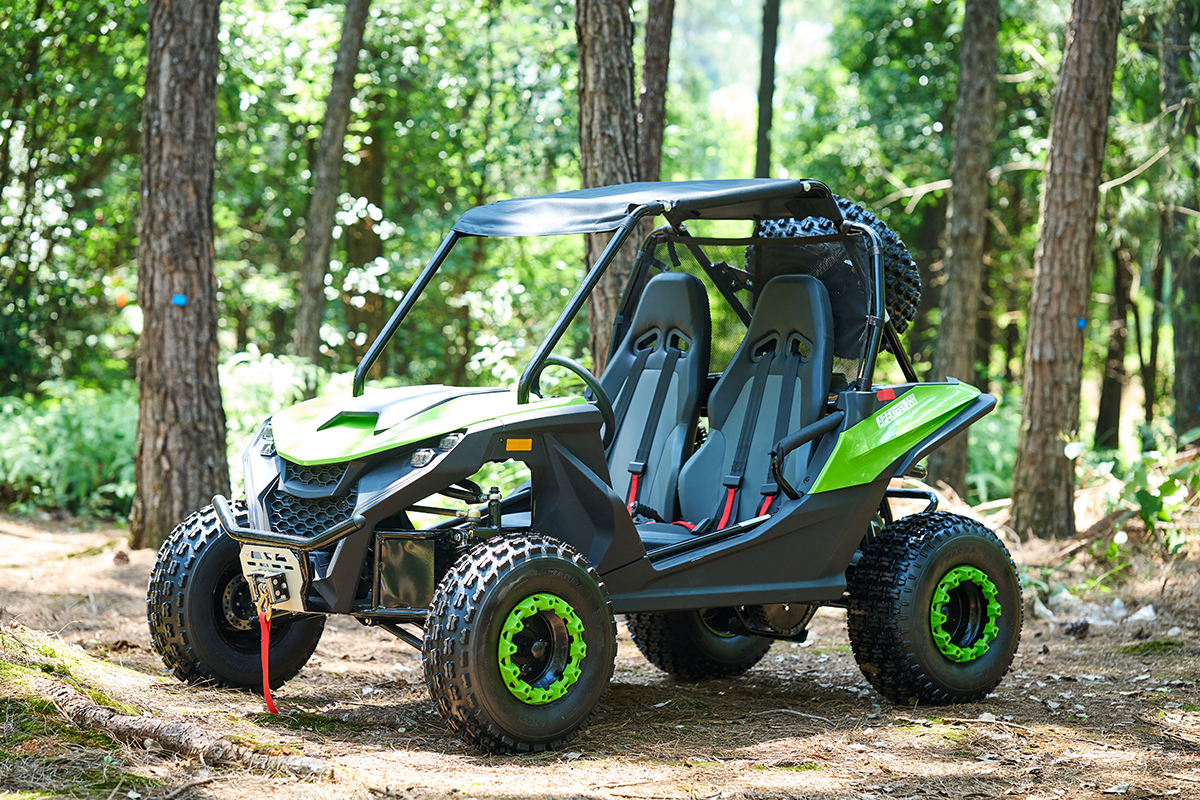

200cc Go-kart with CAE Frame Rally Suspension for Adults
200cc Go-kart with CAE Frame Rally Suspension for Adults
Product Description

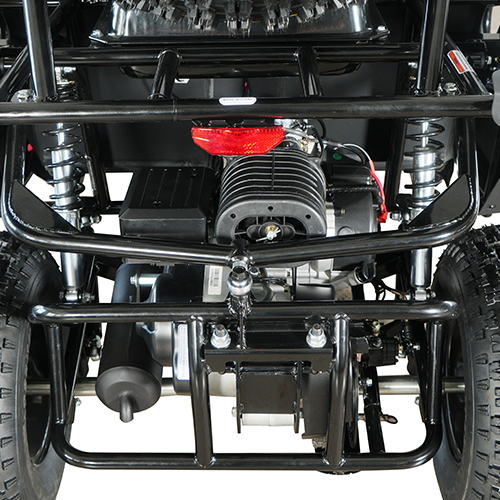

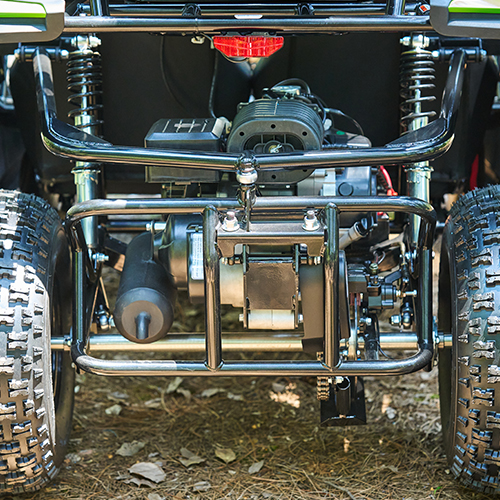

The GK020 All-Terrain Vehicle is engineered to conquer any terrain with its exceptional power, durability, and cutting-edge features. At its heart lies a 180cc Polaris-spec engine with a balancer shaft, delivering robust performance and minimal vibration. Paired with premium C&U bearings and a KMC 530H reinforced chain, the GK020 ensures unmatched reliability and wear resistance.

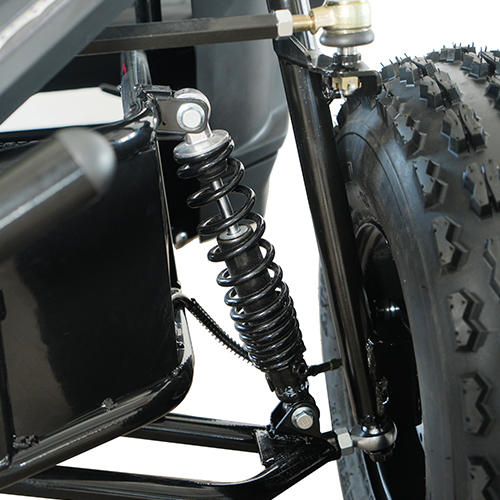

Built on a CAE-optimized frame with interlocking tube structure, the GK020 exceeds U.S. ROPS standards for rollover protection. Its rally-grade suspension—featuring a double A-arm front setup and universal swing-arm rear system—provides superior adaptability and adjustability across all terrains.
Safety is paramount with 4-wheel hydraulic disc brakes, while 22-inch steel rims and WANDA vacuum tires offer unbeatable grip and durability. The dual air filtration system and 15L fuel tank extend engine life and range, complemented by a comfortable sport seat and an 8-inch LCD dashboard for clear visibility.

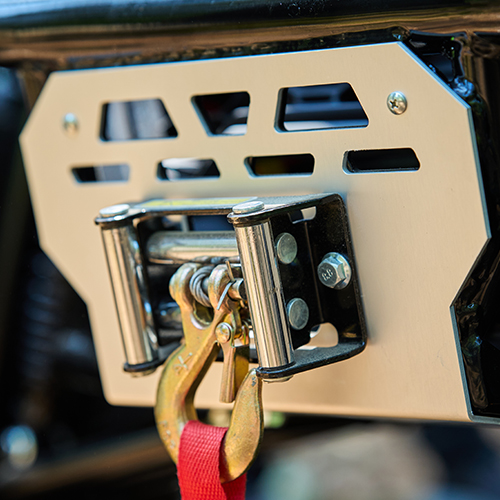

With a sleek, dynamic design and optional accessories like a 2500lbs winch, high-power spotlights, and Bluetooth speakers, the GK020 is ready for adventure—anytime, anywhere.
Experience the ultimate in all-terrain performance with the GK020.
Details
| MODEL NO. | GK020 | GK020 PLUS |
| ENGINE TYPE | 180CC JL1P63F-2, 4-STROKE AIR COOLED | 250CC 4‑STROKE,AIR‑COOLED + OIL COOLED |
| ENGINE POWER | 8.7KW/7000±500 | 12.2KW/7000±500rpm |
| MAX TORQUE | 12.8Nm/5500±500 | 19.5Nm/5500±500rpm |
| IGNITION | CDI | DC-CDI |
| STARTING | ELECTRICAL START | ELECTRICAL + HAND START |

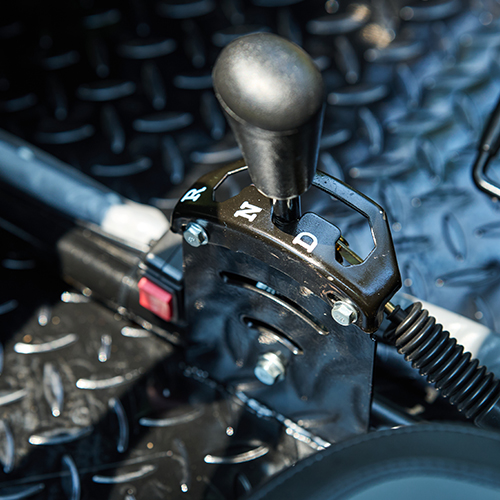

| TRANSMISSION | F-N-R | CVT |
| SUSPENSION/FRONT | HYDRAULIC INDEPENDENT DOUBLE SHOCK ABSORBER | HYDRAULIC INDEPENDENT DOUBLE SHOCK |
| SUSPENSION/REAR | HYDRAULIC INDEPENDENT DOUBLE SHOCK ABSORBER | NDEPENDENT 4‑LINK / DUAL SHOCK |
| BRAKES/FRONT | HYDRAULIC DISC BRAKE | DISC BRAKE |
| BRAKES/REAR | HYDRAULIC DISC BRAKE | DISC BRAKE |
| TIRES/FRONT | 22×7-10 | 22×7-10 |
| TIRES/REAR | 22*10-10 | 22×10-10 |
| SEAT HEIGHT | 504MM | 504MM |
| WHEELBASE | 1656MM | 1700MM |
| GROUND CLEARANCE | 112MM | 112MM |
| BATTERY | 12V9AH | 12V9AH |
| FUEL CAPACITY | 11L | 11L |
| DRY WEIGHT | 226KGS | 305 |
| GROSS WEIGHT | 256KGS | 355 |
| MAX. LOAD | 300KGS | 300KGS |
| PACKAGE SIZE | 1180×2230×640MM | 2310×1280×640MM |
| OVERALL SIZE | 2230×1420×1460MM | 2322×1420×1460MM |
| MAX. SPEED | 50KM/H | ≥50KM/H |
| RIMS | STEEL | STEEL |
| FRONT&REAR LIGHT | LED | LED |
| TURNING LIGHTS | LED | LED |
| SPEEDOMETER | 8-Inch LCD DASHBOARD | 8-Inch LCD DASHBOARD |
| LOADING QUANTITY | 36PCS/40HQ | 36PCS/40HQ |
