200cc Go-kart with CAE Frame Rally Suspension for Adults

200cc Go-kart with CAE Frame Rally Suspension for Adults

Short Description:






  • MODEL: GK020
  • ENGINE TYPE: 180CC JL1P63F-2, 4-STROKE AIR COOLED
  • WHEELS: F: 22×7-10 / R: 22*10-10
  • BRAKE SYSTEM: HYDRAULIC DISC BRAKE
  • Description

    Specification

    Product Tags

    Product Description

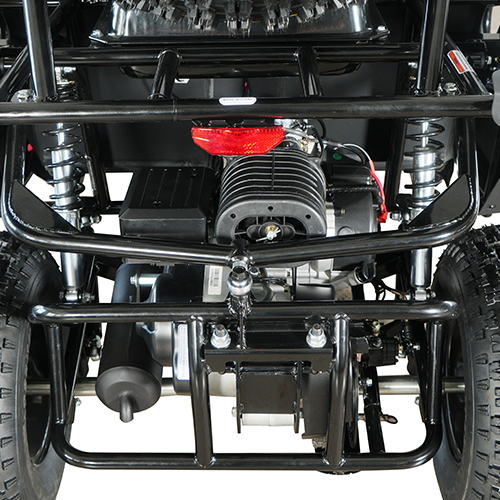

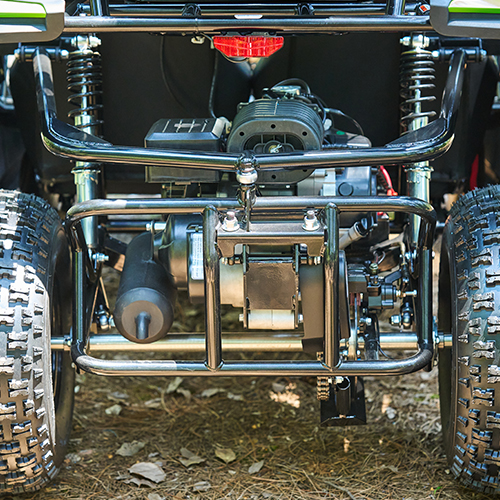

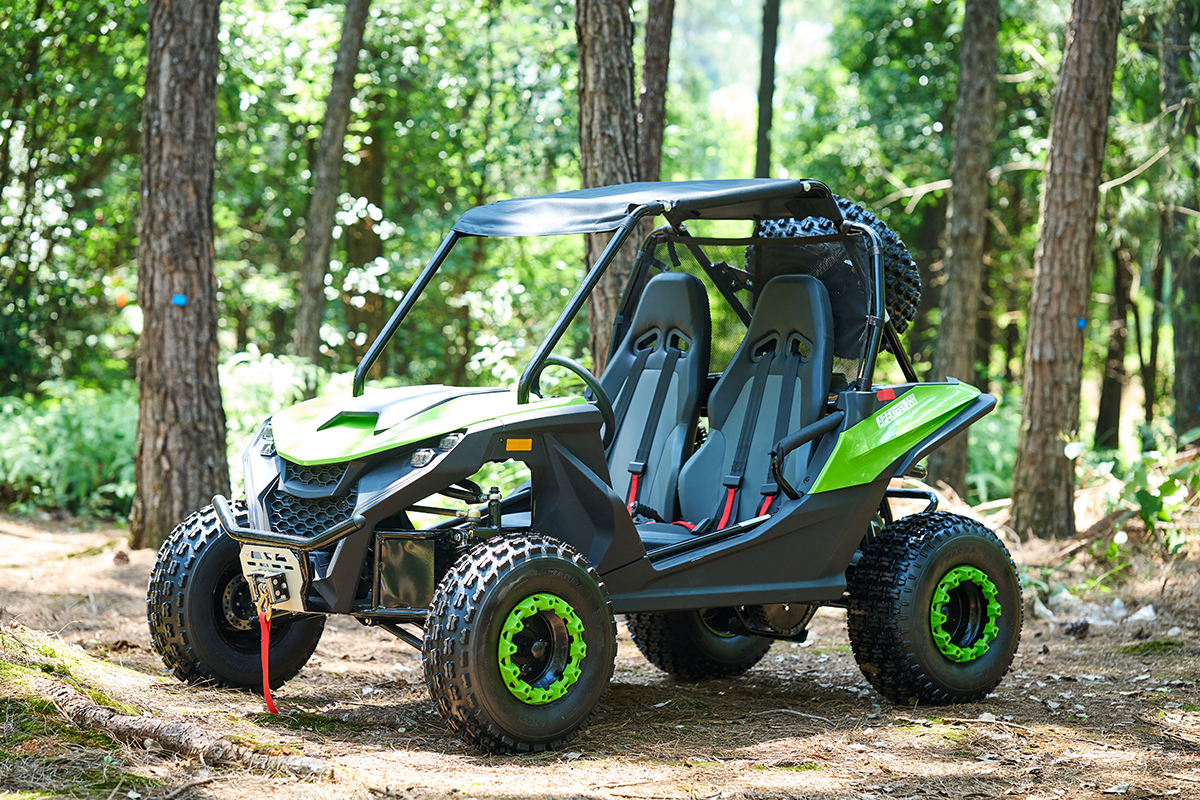

    The GK020 All-Terrain Vehicle is engineered to conquer any terrain with its exceptional power, durability, and cutting-edge features. At its heart lies a 180cc Polaris-spec engine with a balancer shaft, delivering robust performance and minimal vibration. Paired with premium C&U bearings and a KMC 530H reinforced chain, the GK020 ensures unmatched reliability and wear resistance.

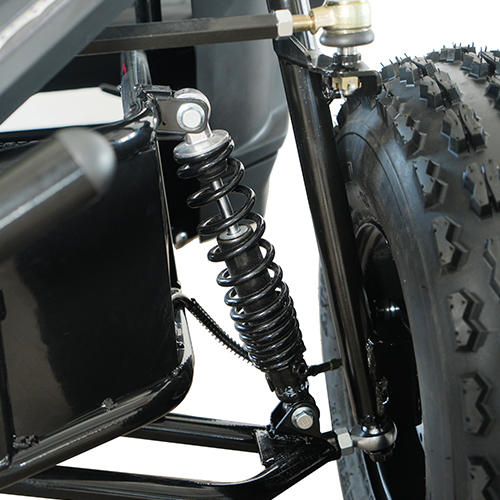

    Built on a CAE-optimized frame with interlocking tube structure, the GK020 exceeds U.S. ROPS standards for rollover protection. Its rally-grade suspensionfeaturing a double A-arm front setup and universal swing-arm rear systemprovides superior adaptability and adjustability across all terrains.

    Safety is paramount with 4-wheel hydraulic disc brakes, while 22-inch steel rims and WANDA vacuum tires offer unbeatable grip and durability. The dual air filtration system and 15L fuel tank extend engine life and range, complemented by a comfortable sport seat and an 8-inch LCD dashboard for clear visibility.

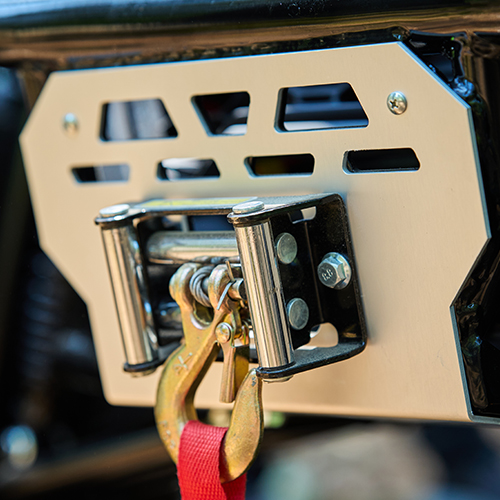

    With a sleek, dynamic design and optional accessories like a 2500lbs winch, high-power spotlights, and Bluetooth speakers, the GK020 is ready for adventureanytime, anywhere.

    Experience the ultimate in all-terrain performance with the GK020.

    Details

    细节2
    细节1

  • Previous:
  • Next:

  • ENGINE: JL1P57F, 4-STROKE,SINGLE CYLINDER,AIR COOLED     JL1P57F
    TANK VOLUMN: 10L
    BATTERY: YTX12-BS 12V10AH
    TRANSMISSION: AUTOMATIC CTV
    FRAME MATERIAL: STEEL
    FINAL  DRIVE: CHAIN / DUAL WHEEL DRIVE
    WHEELS: 22*7-10 /22*10-10
    FRONT&REAR BRAKE SYSTEM: DISK BRAKE
    FRONT&REAR SUSPENSION: ORDINARY
    FRONT LIGHT: Y
    REAR LIGHT: /
    DISPLAY: /
    OPTIONAL: FRONT WINDSHIELDALLOY WHEELSPARE TIRESIDE BIG NETBACK NETLED ROOF LIGHTSIDE MIRRORSSPEEDOMETER
    MAX SPEED: 60KM/H
    MAX LOAD CAPACITY: 500LBS
    SEAT HEIGHT: 470MM
    WHEELBASE: 1800MM
    MIN GROUND CLEARANCE: 150MM
    BIKE SIZE: 2340*1400*1480 MM
    PACKING SIZE: 2300*1200*660MM
    QTY/CONTAINER 20FT/40HQ: 40UNITS / 40HQ
