The ATV009 PLUS is a practical all-terrain vehicle equipped with a 125CC 4-stroke air-cooled engine, delivering stable power output. It comes with an electric start system for quick and efficient ignition. Adopting a chain transmission design, it ensures direct power transfer, and is paired with an automatic gear system with reverse, making operation easy and suitable for various riding scenarios.
The vehicle is fully equipped with hydraulic shock absorbers at the front and rear, which effectively reduce vibrations and enhance riding comfort on rough roads. The combination of front drum brake and rear hydraulic disc brake ensures reliable braking performance. With 19×7-8 front wheels and 18×9.5-8 rear wheels, it boasts strong passability, and the 160mm ground clearance is suitable for off-road situations.
It has an overall dimension of 1600×1000×1030mm, a wheelbase of 1000mm, and a seat height of 750mm, balancing comfort and maneuverability. With a net weight of 105KG and a maximum loading capacity of 85KG, it meets daily use needs. The 4.5L fuel tank ensures daily range, and the LED headlight improves night riding safety. It offers white and black plastic colors, with sticker colors available in red, green, blue, orange and pink, combining practicality and appearance.

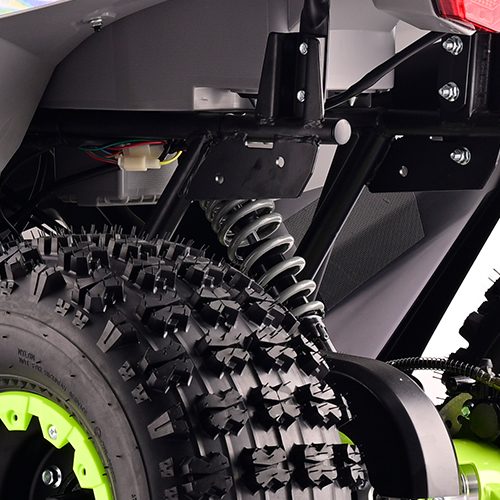

Hydraulic shocks for ATV deliver strong absorption to boost stability and comfort on tough roads.
The sturdy front bumper, made of high-rigidity material, resists impacts/scratches to protect front parts safely in rough rides.
ATV009 PLUS uses chain drive for direct, efficient power transfer with low torque loss, durable and easy to maintain for off-roading.

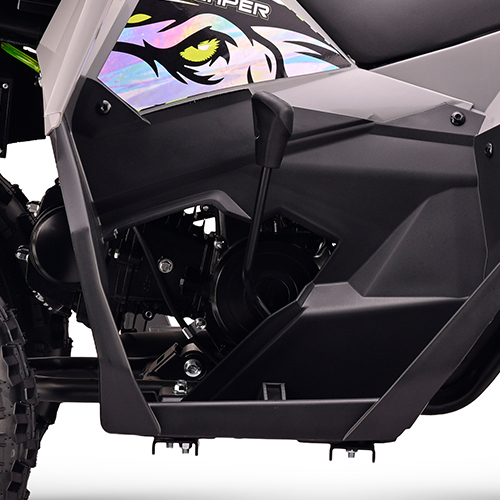

The engine supports manual gear control, with foot shifting available as an option to fit diverse riding preferences.
| MODEL | ATV017 |
| ENGINE | 110CC OR 150CC AIR-COOLED, 4-STROKE, SINGLE CYLINDER |
| STARTING SYSTEM | E-START |
| GEAR | ONE FORWARD GEAR AND ONE REVERSE GEAR |
| MAX SPEED | 60KM/H |
| BATTERY | 12V 5A |
| HEADLIGHT | / |
| TRANSMISSION | CHAIN |
| FRONT SHOCK | INDEPENDENT DOUBLE-WISHBONE |
| REAR SHOCK | SWING ARM WITH SINGLE SHOCK |
| FRONT BRAKE | FRONT DUAL DRUM BRAKES OR DUAL HYDRAULIC DISC BRAKES |
| REAR BRAKE | HYDRAULIC DISC BRAKE, HAND OPERATED OR FOOT OPERATED |
| FRONT & REAR WHEEL | 19×7-8 /18×9.5-8 |
| TANK CAPACITY | L3 |
| WHEELBASE | 1000MM |
| SEAT HEIGHT | 706MM |
| GROUND CLEARANCE | 160MM |
| NET WEIGHT | 115KG |
| GROSS WEIGHT | 131KG |
| MAX LOADING | 85KG |
| OVERALL DIMENSIONS | 1570 x 1010 x 1060MM HANDGRIP HEIGHT, MIRROR HEIGHT 1330M |
| PACKAGE SIZE | 1430x830x660MM |
| CONTAINER LOADING | 30PCS/20FT, 88PCS/40HQ |
| REGULAR FRAME COLOR | RED, WHITE, BLACK, BLUE, YELLOW |
| MUFFLER | SINGLE ALLOY |
