18“ &20” Electric Balance Bike Hub Motor
18“ &20” Electric Balance Bike Hub Motor
Details
| MODEL # | HP123E ZD 18″ | HP123E ZD 20″ |
| FRAME | ALUMINUM 6061 | ALUMINUM 6061 |
| MOTOR | 36V 500W REAR BRUSHLESS MOTOR | 36V750W REAR BRUSHLESS MOTOR |
| BATTERY | 36V5AH LITHIUM BATTERY SAMSUNG | 36V7AH LITHIUM BATTERY SAMSUNG |
| TRANSMISSION | HUB DIRVE | HUB DIRVE |
| WHEELS | 18*2.1 OFF ROAD TYRE CST BRAND | 20*2.6 OFF ROAD TYRE KENDA BRAND |

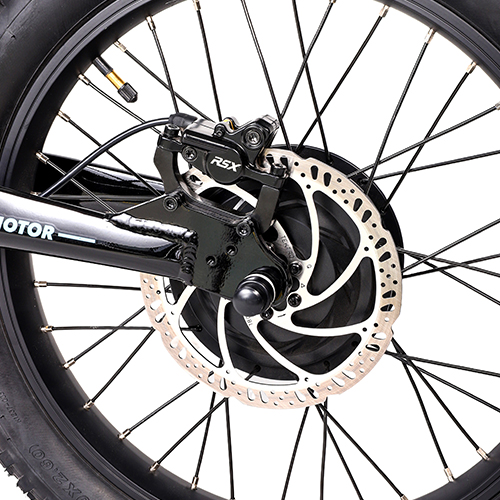

| BRAKE SYSTEM | F&R HYDRAULIC DISC BRAKE | F&R HYDRAULIC DISC BRAKE |
| FRONT FORK | FULL SUSPENSION FORK (ADJUSTABLE) | ALUMINUM+ STEEL SUSPENSION FORK MOZO (ADJUSTABLE) |

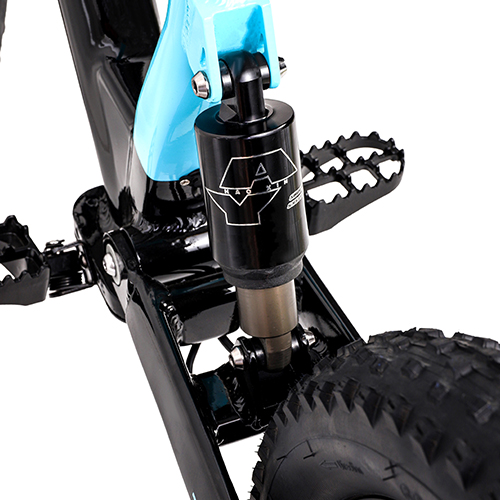

| REAR SUSPENSION | SPRING | SPRING |
| SPEED CONTROL | 5-SPEED CONTROL (8km/h -16km/h – 24km/h – 32km/h – 33km/h) |
5-SPEED CONTROL (8km/h – 16km/h – 24km/h – 32km/h – 34km/h) |
| MAX SPEED | 25KM/H(SPEED LIMIT), 36KM/H( NONE SPEED LIMIT) | 36KM/H |
| RANGE PER CHARGE | 15-25KM | 20-40KM |
| MAX LOAD CAPACITY | 80KG | 80KG |
| SEAT HEIGHT | 655-790MM | 685-820MM |
| MINIMUM GROUND CLEARANCE | 190MM-230MM | 220-260MM |
| WHEELBASE | 100CM | 100CM |
| GROSS WEIGHT | 22.5KGS | 23.5KG |
| NET WEIGHT | 20KGS | 21KG |
| PRODUCTS SIZE | 1500*600*900MM | 1560*600*930CM |
| PACKING SIZE | 1170*250*700MM | 120*25*70CM |
| CONTAINER LOADING | 125PCS/20FT;304PCS/40HQ | 120PCS/20FT;300PCS/40HQ |
