1000w 36v kids electric atv quad bike brushless motor electric mini atv with CE
1000w 36v kids electric atv quad bike brushless motor electric mini atv with CE
Details
| MODEL | ATV-12EA 1000W36V |

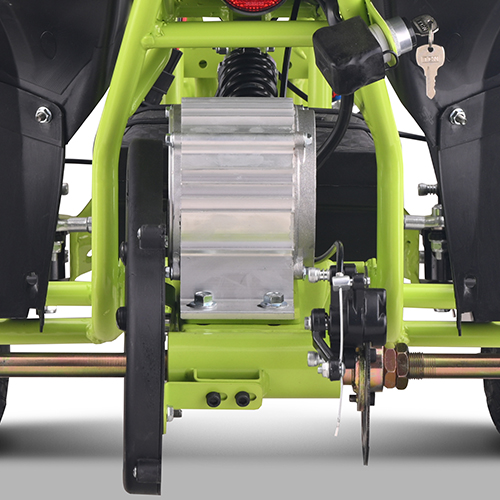

| MOTOR | BRUSHLESS DC MOTOR |
| RATED POWER | 1000W36V |
| MAX POWER | 1200W |
| MAX SPEED | 30KM/H |
| THREE SPEED KEY SWITCH | AVAILABLE |

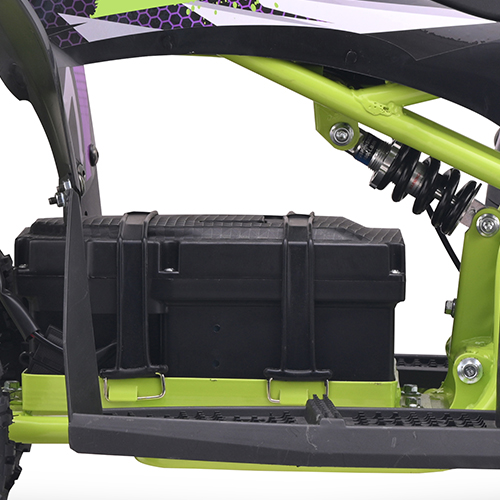

| BATTERY | 36V12AH LEAD-ACID |
| HEADLIGHT | LED |
| TRANSMISSION | CHAIN |

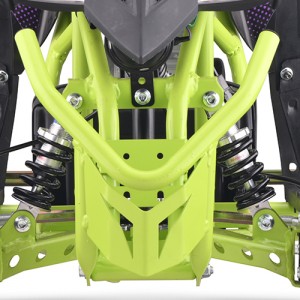

| FRONT SHOCK | DOUBLE SPRING DAMPING |
| REAR SHOCK | SPRING DAMPING |
| FRONT BRAKE | DOUBLE MANIPULATOR BRAKE |
| REAR BRAKE | MECHANICAL DISC BRAKE |
| FRONT & REAR WHEEL | 4.10-6/13*5-6 |
| WHEELBASE | 730MM |
| SEAT HEIGHT | 530MM |
| GROUND CLEARANCE | 70MM |
| NET WEIGHT | 50KG |
| GROSS WEIGHT | 62KG |
| MAX LOADING | 60KG |
| OVERALL SIZE | 1080x610x740MM |
| PACKAGE SIZE | 1000x580x440MM |
| CONTAINER LOADING | 110PCS/20FT, 276PCS/40HQ |
